Description

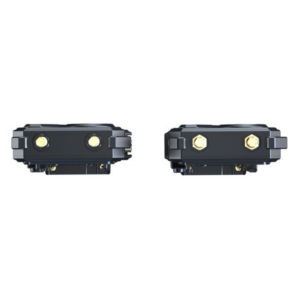

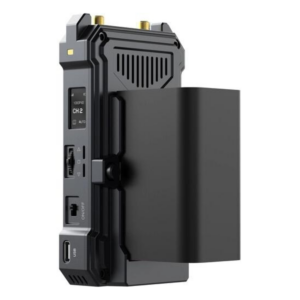

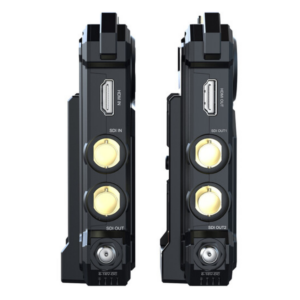

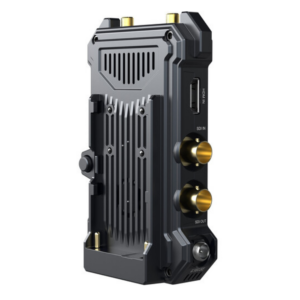

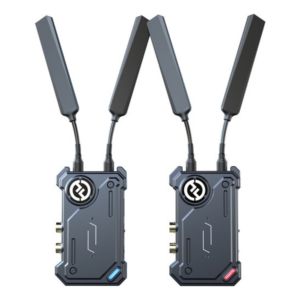

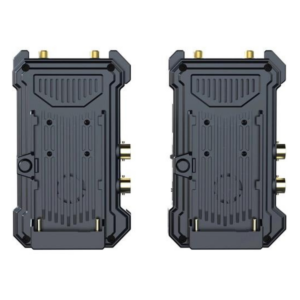

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
You can wirelessly transfer high-resolution video up to 1080p60 over extended distances with the Cosmo C1 SDI/HDMI Wireless Video Transmission System from Hollyland, enabling flexible video monitoring and distribution for your studio or field production. A receiver and a transmitter are included in this package.
Specification
General
| Antenna I/O | Transmitter/Receiver: 2 x RP-SMA Male |
| Video I/O | Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 2 x BNC (3G-SDI) Output Receiver: 1 x HDMI Output |
| HDCP Support | Not Specified by Manufacturer |
| Embedded Audio | HDMI/SDI: 2-Channel |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input |
| Encryption | 128-Bit AES |
Wireless
| Wireless Range | 1000′ / 304.8 m |
| Channel Bandwidth | 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | 40 ms |
| RF Power | 22 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | Yes |
| Bluetooth | None |
Format Support
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 16 VDC |
| Battery Type | Transmitter/Receiver: 1 x L-Series |
| Power Consumption | Transmitter/Receiver: 9 W |
Packaging Info
| Package Weight | 4.39 lb |
| Box Dimensions (LxWxH) | 11.6 x 10.8 x 5.5″ |
