EPS-5015 TTL Brushless Smart Servo Motor
- Professional Brushless Smart Servo – The EPS-5015 delivers up to 15kg·cm stall torque, making it suitable for robotic joints, robotic arms, mobile robots, and automation systems requiring reliable torque output.
- Compact High-Torque Design – Measuring 38 × 23 × 28mm and weighing only 50g, the EPS-5015 offers an excellent balance of compact size and high performance for space-constrained robotic applications.
- High-Efficiency Brushless Motor – Built with a brushless DC motor, providing improved efficiency, reduced maintenance, smoother operation, and extended service life compared to conventional cored motors.
- Fast 150 RPM Performance – Offers a 150 RPM no-load speed, enabling quick and responsive motion for robotic manipulators, mobile platforms, and dynamic automation systems.
- TTL Serial Communication – Equipped with a TTL communication interface for integration with compatible servo controllers, embedded systems, and robotics development platforms.
- 12V Operating Voltage – Designed to operate at 12V DC, providing stable performance for professional robotics and automation applications.
- High Power Capability – Supports a maximum stall current of 8A, enabling strong torque delivery during demanding motion and load-bearing applications.
- Ideal for Advanced Robotics – Suitable for robotic arms, quadruped robots, humanoid robots, educational research platforms, automation equipment, and custom mechatronic projects.
- Easy System Integration – Its compact dimensions and TTL communication simplify installation into new robotic designs or existing motion-control systems.
- Designed for Precision Motion Control – Combines high torque, brushless efficiency, and responsive speed to deliver smooth, repeatable, and reliable actuator performance.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EPS Series
EPS-5015 TTL Brushless Smart Servo Motor
The EPS-5015 is genuine Energize Lab professional-grade hardware — a brushless smart servo built for robotic arms, humanoid and quadruped robots, and industrial automation, not a consumer-toy component.
Brushless Motor
TTL Serial Control
12V / 8A
Professional Grade
Full Specifications
| Specification | Details |
|---|---|
| Product | EPS-5015 TTL Brushless Smart Servo Motor — genuine Energize Lab hardware, “EPS-5015” and the Energize Lab logo molded into the housing |
| Product Category | Professional Brushless Smart Servo Motor / Robotics Actuator Component |
| Stall Torque | 15kg·cm (at rated 12V input) |
| No-Load Speed | 120 RPM per Energize Lab’s own spec table (xBoom’s listing states 150 RPM — see note above) |
| Stall Current | 8A maximum |
| Motor Type | Brushless DC motor |
| xBoom SKU | xboom-146203 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, for integration with compatible servo controllers and microcontrollers |
| Input Voltage | 12V |
| Dimensions | 38 × 23 × 28mm |
| Weight | 50g |
| Series | Energize Lab EPS Series (also includes EPS-5030, EPS-5060, and EPS-5090) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
Professional-Grade, Brushless, Genuinely Energize Lab
EPS-5015 TTL Brushless Smart Servo Motor: Genuine Energize Lab Hardware

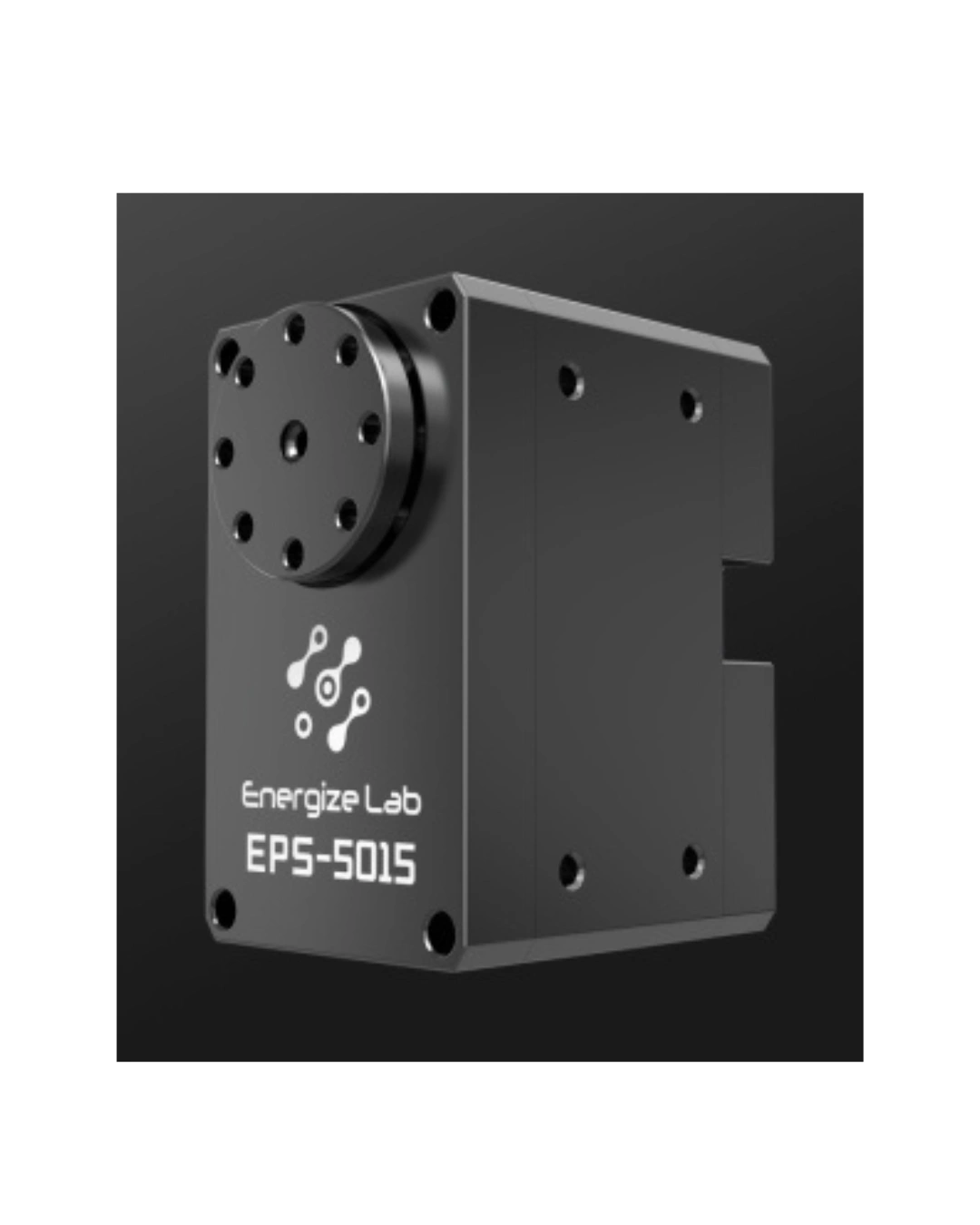

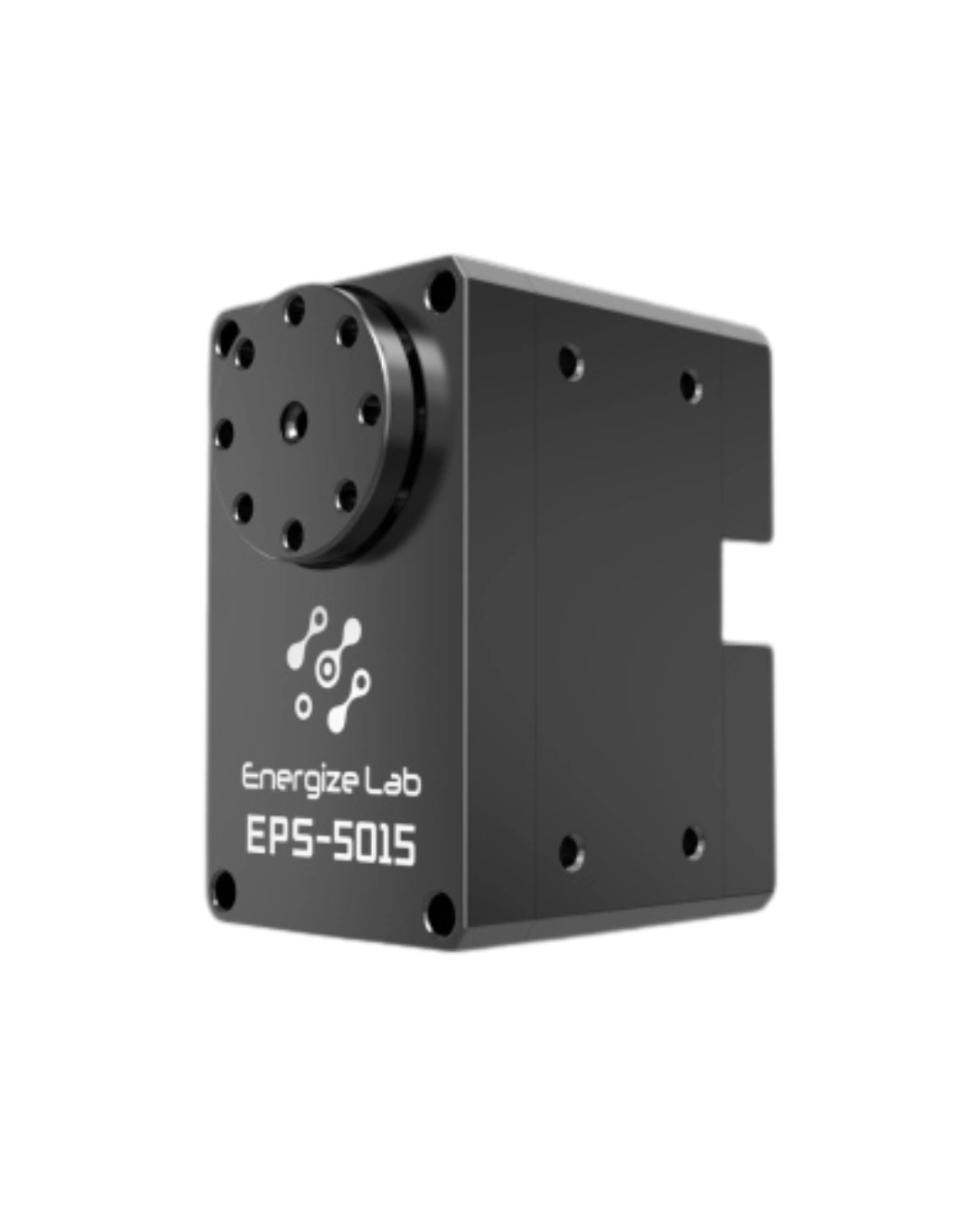

The EPS-5015 is genuine Energize Lab hardware — “EPS-5015” and the Energize Lab logo are molded directly into the housing across all 3 of its product photos, the same clear branding standard as the EH-30 and EM-10. It sits in Energize Lab’s professional EPS Series, built around brushless motors rather than the cored motors used in the smaller EM and EH series covered elsewhere in xBoom’s catalog.
A brushless DC motor uses electronic commutation instead of physical brushes, which generally means less internal friction and wear, smoother torque delivery, and a longer service life than a comparable cored/brushed motor — exactly the tradeoff Energize Lab’s own product description highlights. At 15kg·cm stall torque, 12V input, and 8A max stall current, the EPS-5015 is built for real robotic joints under sustained load: robotic arms, humanoid and quadruped platforms, and industrial automation, not lightweight hobbyist builds.
15kg·cm Torque
Real holding power for professional robotic joints.
Brushless Motor
Less friction, smoother operation, longer service life.
Visibly Genuine
Energize Lab’s logo is molded directly into the housing.
TTL Serial Control
Consistent protocol across Energize Lab’s servo lineup.
See Every Detail
What It Is, and Where It Goes
The EPS-5015 is a professional brushless smart servo motor — a self-contained rotary actuator with its own control electronics, built for demanding joints inside a larger robotic or automation system, not a standalone product on its own.
🤖 Robotics Actuator
🦾 Robotic Arm Joint Component
🏭 Industrial Automation
🔗 TTL Bus Servo
Robotic Arms & Manipulators
Joints needing smooth, sustained torque delivery.
Humanoid Robot Joints
Hip, knee, and shoulder actuation for bipedal platforms.
Quadruped Robot Joints
Load-bearing leg actuation for four-legged platforms.
Industrial Automation
Positioning tasks in automation equipment and fixtures.
Research Platforms
Reliable, well-specified actuation for robotics research.
Advanced Educational Robotics
University and competition-level robotics programs.
From the Same Manufacturer Behind Eilik
The EPS-5015 is genuine Energize Lab hardware from its professional EPS Series — a different, brushless-motor product line from the cored-motor EM and EH servos used in Energize Lab’s consumer robots. It is not confirmed to be the servo inside Eilik or Panxer; what it shares with them is the same manufacturer and the same TTL control protocol, applied here to industrial-grade brushless hardware.
Note: despite the “50-15/30/60/90” model numbering suggesting a clean torque progression, Energize Lab’s own EPS-5060 is a genuine outlier — its published stall torque is 3kg, not the ~60kg the naming pattern would suggest. Verified directly against the manufacturer’s own comparison table, not a typo on our part.
Built for Professional Robotic Motion
The EPS-5015 TTL Brushless Smart Servo Motor brings genuine, industrial-grade Energize Lab engineering to demanding robotics work.
💪
15kg·cm Stall Torque
Real holding power for professional robotic joints.
🧲
Brushless DC Design
Less friction and maintenance than a cored/brushed motor.
🔌
TTL Serial Interface
Consistent protocol across Energize Lab’s whole lineup.
⚖️
50g, 38×23×28mm
Compact for a servo rated at this torque and current.
⚡
12V, 8A Stall
Professional-grade power delivery for demanding loads.
🏷️
Visibly Genuine Branding
Energize Lab logo confirmed in every product photo.
Built for Professional Robotics Builders
The EPS-5015 TTL Brushless Smart Servo Motor suits builders working on serious, sustained-duty robotic systems.
Advanced Educational Robotics
University and competition-level robotics programs.
Industrial Automation
Reliable brushless actuation for automation equipment.
Robotic Arms & Manipulators
Smooth, sustained torque for professional arm joints.
Humanoid & Quadruped Robots
Load-bearing joint actuation for advanced platforms.
Custom Mechatronics Projects
A professional-grade building block for original designs.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EPS-5015-specific demo — this is professional/industrial hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer — not as a claim that this exact part is used inside them.
