EXA-4015 Compact Brushless Servo Motor
- Delivers up to 15kg stall torque in an ultra-compact design, offering an excellent torque-to-size ratio for precision robotics.
- Compact 29 × 16.5 × 24.5 mm housing fits easily into grippers, small robotic joints, and other space-constrained applications.
- Lightweight 35g construction is ideal for weight-sensitive robots, gimbals, and compact animatronic projects.
- High-efficiency brushless motor provides smoother operation, improved reliability, and longer service life than brushed servos.
- Operates on a 12V input voltage, making it compatible with standard robotics power systems and battery packs.
- Low 1.2A stall current helps reduce power consumption and supports multi-servo systems sharing a single power supply.
- TTL communication interface enables simple wiring and convenient daisy-chaining of multiple servos.
- 60 RPM no-load speed delivers smooth, controlled motion for precision positioning rather than high-speed operation.
- Part of the Energize Lab EXA Series, designed for compact, high-performance robotics and automation applications.
- Perfect for robotic grippers, compact robotic arms, pan-tilt systems, gimbals, animatronics, and other space- and weight-constrained actuation projects.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EXA Series
EXA-4015 Compact Brushless Servo Motor
Genuine Energize Lab hardware — a precision-machined, brushless servo with an outstanding torque-to-size ratio, built for grippers, gimbals, and space-constrained robotic joints.
Brushless Motor
TTL Serial Control
29×16.5×24.5mm
Verified Spec
Full Specifications
| Specification | Details |
|---|---|
| Product | EXA-4015 Compact Brushless Servo Motor — genuine Energize Lab hardware, “EXA-4015” and the Energize Lab logo machined into the housing |
| Product Category | Compact Brushless Smart Servo Motor / Robotics Actuator Component |
| Stall Torque | 15kg (at rated 12V input) |
| No-Load Speed | 60 RPM — tuned for precision positioning rather than high-speed operation |
| Stall Current | 1.2A maximum |
| Motor Type | Brushless DC motor (verified — see note above) |
| xBoom SKU | xboom-146238 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, supports daisy-chaining multiple servos on one bus |
| Input Voltage | 12V |
| Dimensions | 29 × 16.5 × 24.5mm |
| Weight | 35g |
| Series | Energize Lab EXA Series (also includes EXA-4030 and EXA-4060) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
Precision-Machined, Genuinely Energize Lab
EXA-4015 Compact Brushless Servo Motor: Genuine Energize Lab Hardware

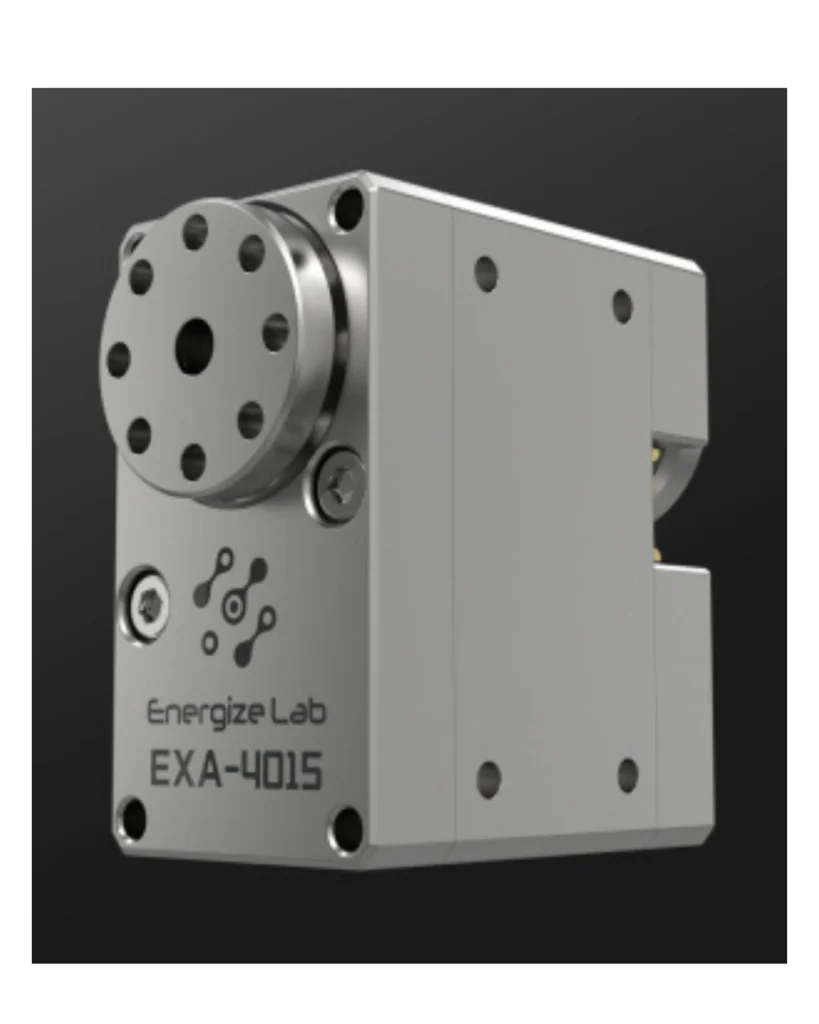

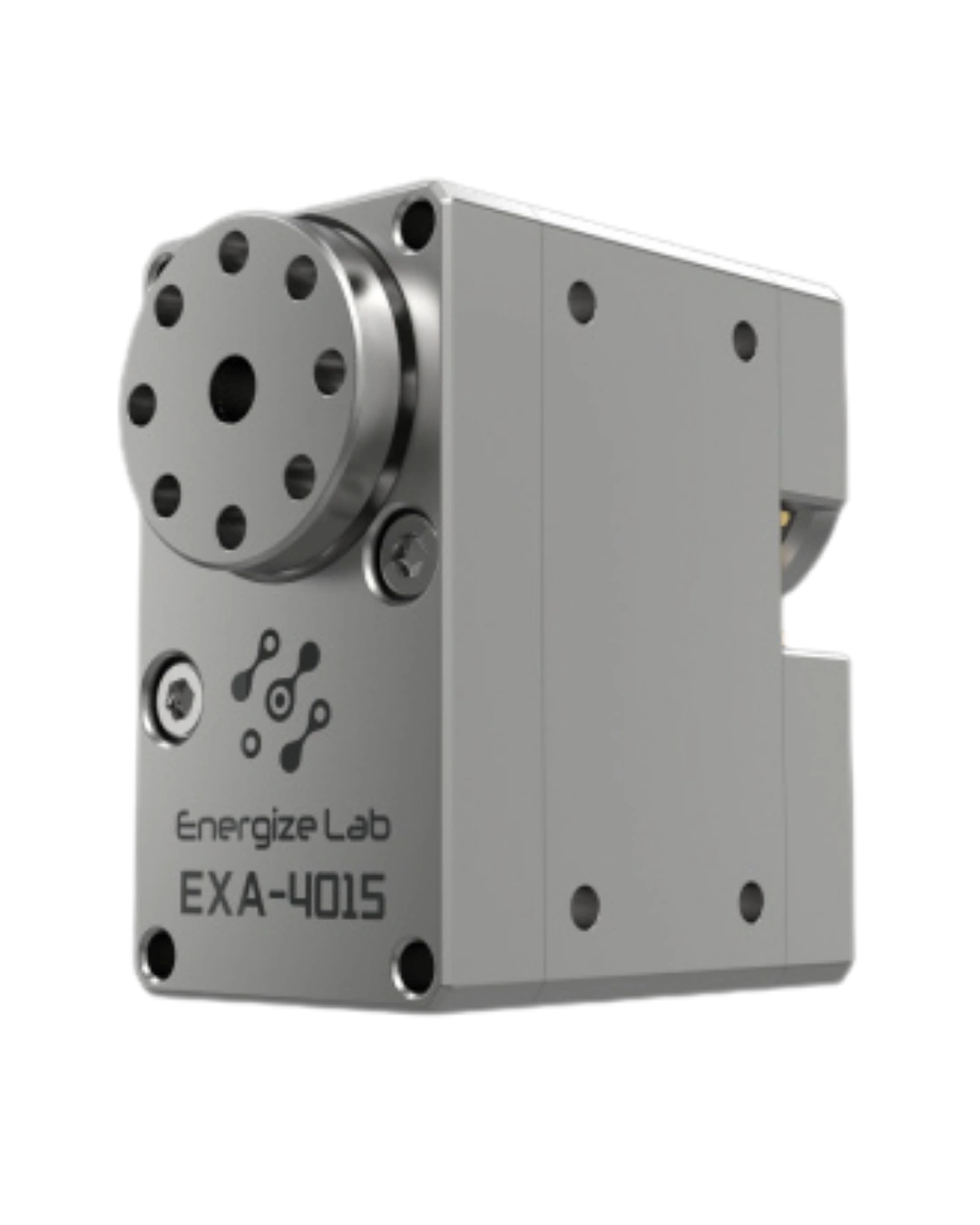

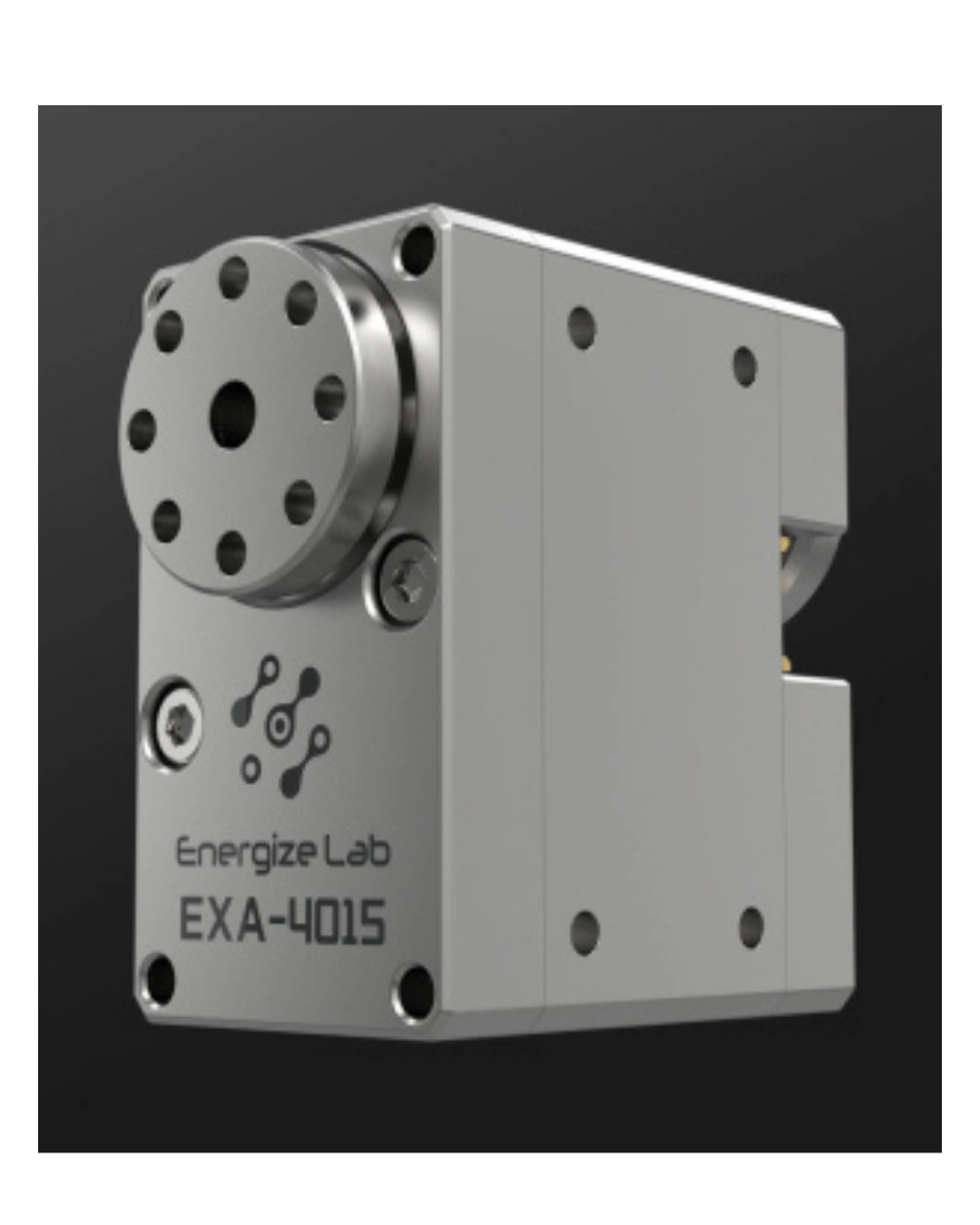

The EXA-4015 is genuine Energize Lab hardware — “EXA-4015” and the Energize Lab logo are machined directly into a precision metal housing, visible across all 3 product photos. It’s a visibly different build tier from the plastic-housing EM/EH consumer servos: the EXA Series pairs a compact 29 × 16.5 × 24.5mm footprint with a machined-metal enclosure built for demanding, space-constrained robotics work.
At 15kg stall torque and just 35g, the EXA-4015 offers an exceptional torque-to-weight ratio — well-suited to grippers, small robotic joints, gimbals, and compact animatronics where both space and weight are tightly constrained. Its 60 RPM no-load speed is deliberately tuned for smooth, precise positioning rather than fast movement, consistent with xBoom’s own description of the unit.
15kg Torque, 35g Weight
An exceptional torque-to-size ratio for precision robotics.
Brushless Motor
Verified against two independent first-party sources.
Visibly Genuine
Energize Lab’s logo is machined directly into the housing.
TTL Serial Control
Daisy-chain multiple servos on a single control bus.
See Every Detail
What It Is, and Where It Goes
The EXA-4015 is a compact brushless smart servo motor — a self-contained rotary actuator with its own control electronics, built to fit tight, weight-sensitive spaces inside a larger robotic assembly.
🤖 Robotics Actuator
🤏 Gripper Component
🎥 Gimbal & Camera Mounts
🔗 TTL Bus Servo
Robotic Grippers
Compact torque for precision gripping mechanisms.
Small Robotic Joints
Space-constrained joints in compact robotic arms.
Gimbals & Camera Mounts
Smooth, precise stabilization and aiming.
Pan-Tilt Systems
Compact positioning for sensors and small cameras.
Compact Animatronics
Lightweight, precise motion for animatronic figures.
Custom Mechatronics
A high torque-to-size building block for tight designs.
From the Same Manufacturer Behind Eilik
The EXA-4015 is genuine Energize Lab hardware from its precision EXA Series — a different, brushless-motor product line from the cored-motor EM and EH servos used in Energize Lab’s consumer robots. It is not confirmed to be the servo inside Eilik or Panxer; what it shares with them is the same manufacturer and the same TTL control protocol.
Precision Torque in a Tiny Footprint
The EXA-4015 Compact Brushless Servo Motor brings genuine Energize Lab engineering to space-constrained robotics work.
💪
15kg Stall Torque
Exceptional torque for a housing this compact.
⚖️
35g, 29×16.5×24.5mm
One of the smallest, lightest servos in Energize Lab’s catalog.
🧲
Brushless DC Design
Verified, not guessed — confirmed via two first-party sources.
🔌
TTL Serial Interface
Daisy-chain multiple servos on a shared control bus.
⚡
12V, 1.2A Stall
Low current draw for multi-servo, battery-conscious builds.
🏷️
Visibly Genuine Branding
Energize Lab logo confirmed in every product photo.
Built for Space- and Weight-Constrained Robotics
The EXA-4015 suits builders who need real torque out of the smallest, lightest possible package.
Robotic Grippers
Compact, high-torque actuation for gripping mechanisms.
Gimbals & Stabilization
Smooth, precise motion for camera and sensor mounts.
Compact Robotic Arms
Space-constrained joints without sacrificing torque.
Animatronics
Lightweight, precise motion for animatronic figures.
Custom Mechatronics Projects
A precision building block for tight-tolerance designs.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EXA-4015-specific demo — this is precision/industrial hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer — not as a claim that this exact part is used inside them.
Frequently Asked Questions
Is the EXA-4015 brushless or coreless?
What type of product is the EXA-4015 Compact Brushless Servo Motor?
What makes the EXA Series different from the EPS Series?
Is this the servo used inside Eilik or Panxer?
What voltage does it need?
Are there other sizes in this servo family?
