EXA-4030 Brushless Servo Motor
- Delivers up to 30kg stall torque, making it ideal for demanding robotic joints and mid-load actuation applications.
- Compact 38.5 × 21 × 32 mm housing provides a space-efficient design without compromising torque output.
- Lightweight 65g construction offers an excellent power-to-weight ratio for articulated and mobile robot builds.
- High-performance brushless motor ensures smoother operation, increased efficiency, and longer service life than brushed servos.
- Operates on a 12V input voltage, compatible with standard robotics batteries and power systems.
- 4A stall current rating provides moderate power consumption, making it suitable for multi-servo configurations.
- TTL communication interface enables simplified wiring and easy daisy-chaining of multiple servos on a single bus.
- 50 RPM no-load speed delivers smooth, controlled motion optimized for torque-focused robotic applications.
- Part of the Energize Lab EXA Series, offering compact, high-performance servos for robotics, automation, and product development.
- Ideal for robotic arm joints, grippers, pan-tilt systems, automation equipment, and other space-constrained, mid-load actuation projects.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EXA Series
EXA-4030 Brushless Servo Motor
Genuine Energize Lab hardware — a precision-machined, mid-torque brushless servo for demanding robotic arm joints, grippers, and other mid-load actuation work.
Brushless Motor
TTL Serial Control
38.5×21×32mm
Verified Spec
Full Specifications
| Specification | Details |
|---|---|
| Product | EXA-4030 Brushless Servo Motor — genuine Energize Lab hardware, “EXA-4030” and the Energize Lab logo machined into the housing |
| Product Category | Compact Brushless Smart Servo Motor / Robotics Actuator Component |
| Stall Torque | 30kg (at rated 12V input) |
| No-Load Speed | 50 RPM — smooth, controlled motion optimized for torque over speed |
| Stall Current | 4A maximum |
| Motor Type | Brushless DC motor (verified against xBoom’s own listing and Energize Lab’s manufacturer page — see the EXA-4015 page for the full “coreless vs. brushless” verification story) |
| xBoom SKU | xboom-146242 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, supports daisy-chaining multiple servos on one bus |
| Input Voltage | 12V |
| Dimensions | 38.5 × 21 × 32mm |
| Weight | 65g |
| Series | Energize Lab EXA Series (also includes EXA-4015 and EXA-4060) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
The EXA Series’ Mid-Torque Option
EXA-4030 Brushless Servo Motor: Genuine Energize Lab Hardware

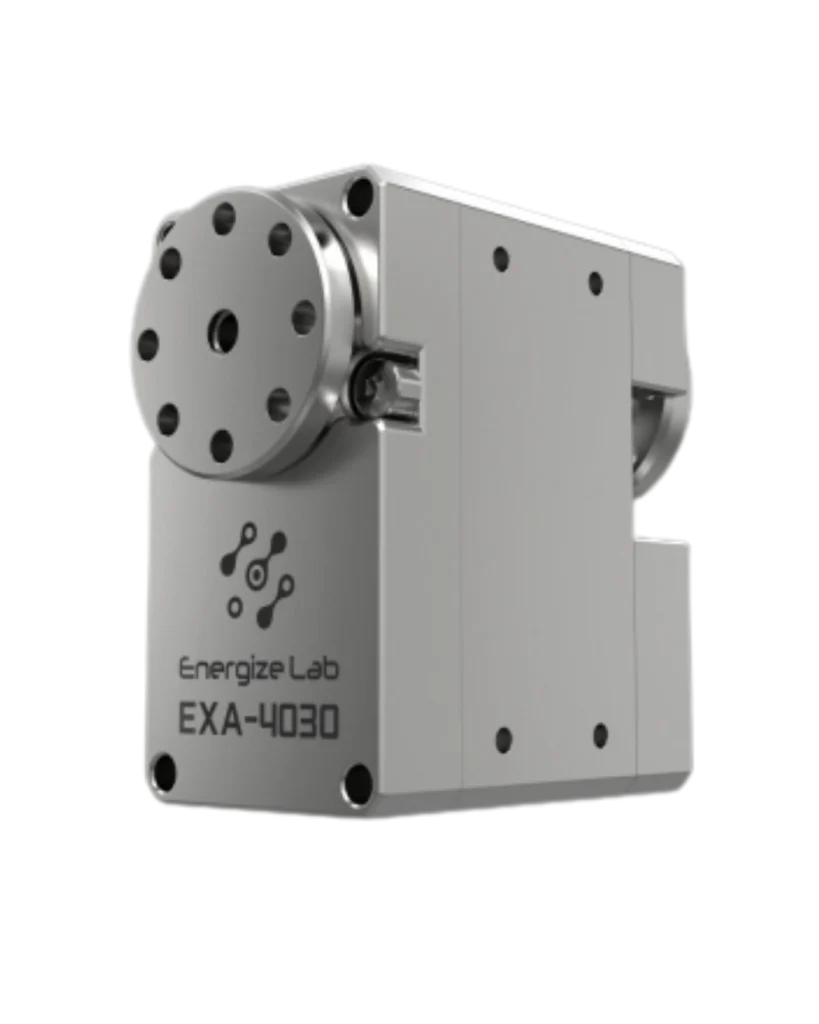

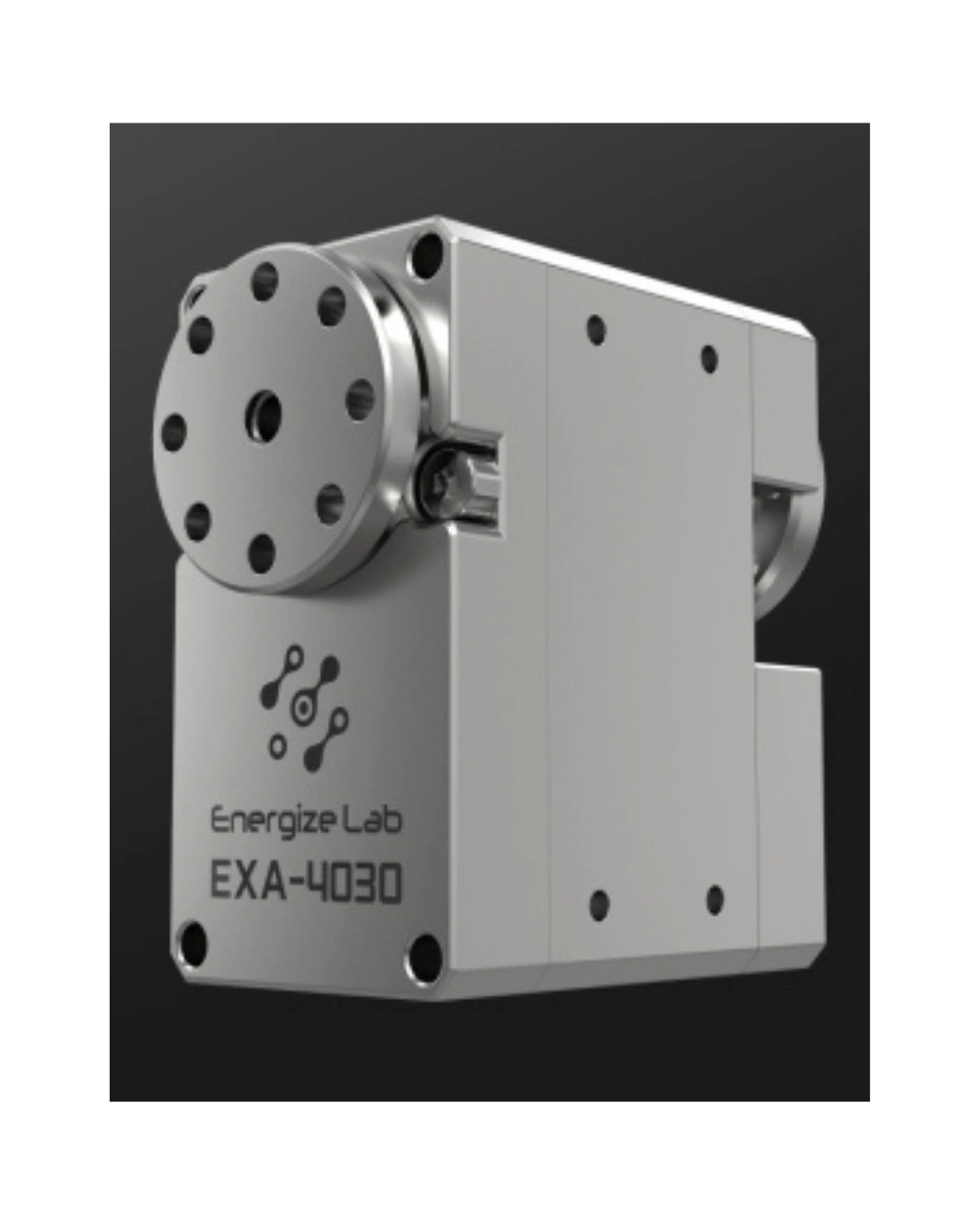

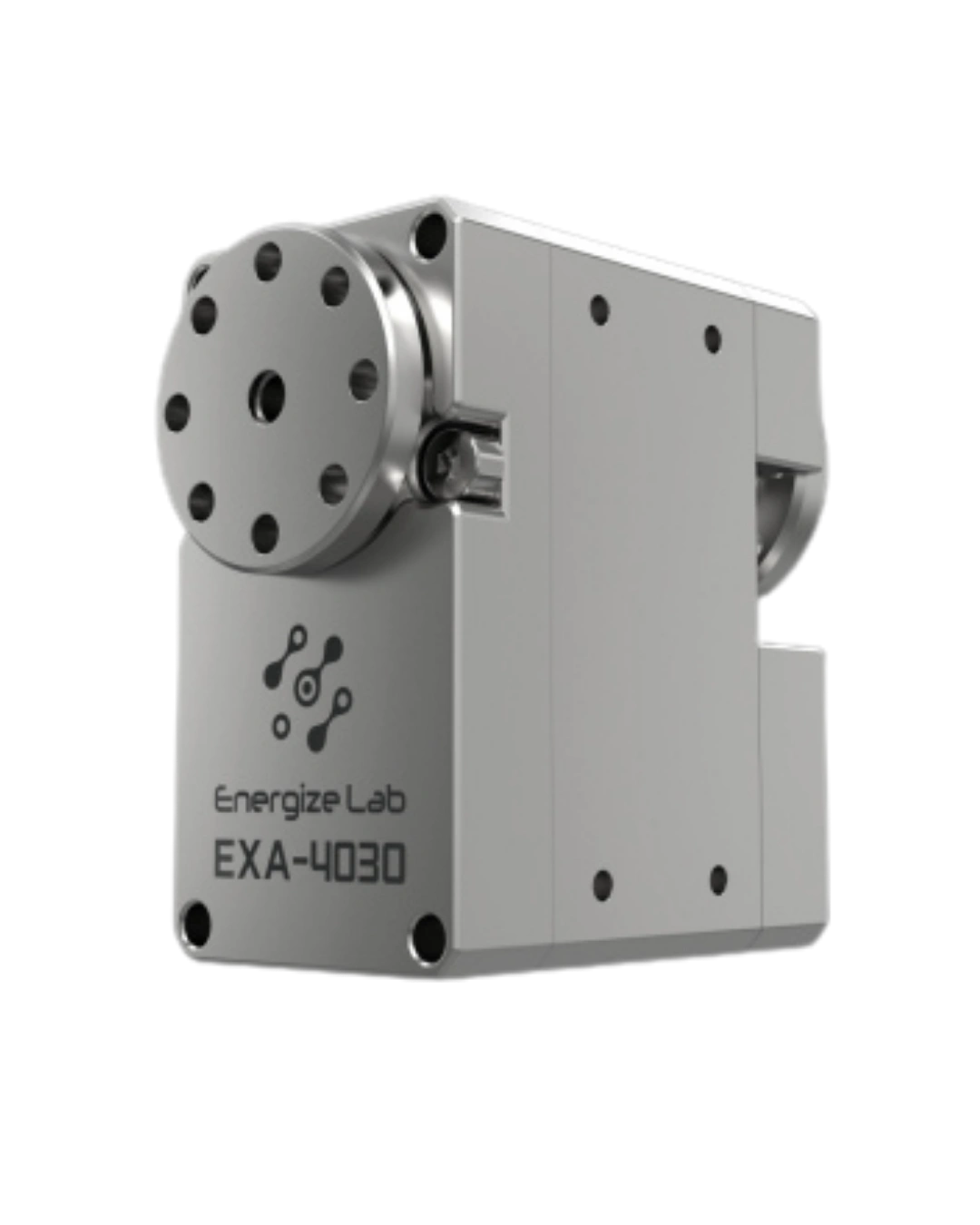

The EXA-4030 is genuine Energize Lab hardware — “EXA-4030” and the Energize Lab logo are machined directly into a precision metal housing, visible across all 3 product photos. It sits between the compact EXA-4015 and the higher-torque EXA-4060 in Energize Lab’s precision EXA Series, all sharing the same machined-metal build quality.
At 30kg stall torque — double the EXA-4015’s rating — in a housing just slightly larger (38.5×21×32mm vs. 29×16.5×24.5mm) and heavier (65g vs. 35g), the EXA-4030 targets demanding robotic arm joints and mid-load actuation where the smaller EXA-4015 wouldn’t have enough torque. Its 50 RPM no-load speed, slower than the EXA-4015’s 60 RPM, reflects the same speed-for-torque tradeoff seen across Energize Lab’s other servo lines.
| Spec | EXA-4015 | EXA-4030 (this product) |
|---|---|---|
| Stall Torque | 15kg | 30kg |
| Dimensions | 29×16.5×24.5mm | 38.5×21×32mm |
| Weight | 35g | 65g |
| No-Load Speed | 60 RPM | 50 RPM |
| Stall Current | 1.2A | 4A |
30kg Torque
Double the EXA-4015’s rating, for heavier joints.
Brushless Motor
Verified against two independent first-party sources.
Visibly Genuine
Energize Lab’s logo is machined directly into the housing.
TTL Serial Control
Daisy-chain multiple servos on a single control bus.
See Every Detail
What It Is, and Where It Goes
The EXA-4030 is a compact brushless smart servo motor — a self-contained rotary actuator with its own control electronics, built for mid-load joints inside a larger robotic or automation system.
🤖 Robotics Actuator
🦾 Robotic Arm Joint Component
🤏 Gripper Component
🔗 TTL Bus Servo
Robotic Arm Joints
Mid-load joints needing more torque than entry-tier servos.
Robotic Grippers
Stronger gripping mechanisms for heavier payloads.
Pan-Tilt Systems
Positioning for mid-sized cameras and sensor mounts.
Automation Equipment
Mid-load positioning tasks in automation fixtures.
Articulated Robot Joints
Mobile and articulated robot builds needing real torque.
Custom Mechatronics
A mid-torque building block for space-constrained designs.
From the Same Manufacturer Behind Eilik
The EXA-4030 is genuine Energize Lab hardware from its precision EXA Series — a different, brushless-motor product line from the cored-motor EM and EH servos used in Energize Lab’s consumer robots. It is not confirmed to be the servo inside Eilik or Panxer; what it shares with them is the same manufacturer and the same TTL control protocol.
Precision Torque for Demanding Joints
The EXA-4030 Brushless Servo Motor brings genuine Energize Lab engineering to mid-load robotics work.
💪
30kg Stall Torque
Double the EXA-4015’s rating for heavier joints.
⚖️
65g, 38.5×21×32mm
Compact for a servo rated at this torque.
🧲
Brushless DC Design
Verified, not guessed — confirmed via two first-party sources.
🔌
TTL Serial Interface
Daisy-chain multiple servos on a shared control bus.
⚡
12V, 4A Stall
Moderate current draw suited to multi-servo systems.
🏷️
Visibly Genuine Branding
Energize Lab logo confirmed in every product photo.
Built for Mid-Load Robotics Work
The EXA-4030 suits builders who need more torque than the EXA-4015 offers, without stepping up to the EXA-4060 flagship.
Robotic Arm Joints
Mid-load torque for demanding arm and joint work.
Robotic Grippers
Stronger grip strength for heavier payloads.
Automation Equipment
Reliable brushless actuation for automation fixtures.
Articulated Robots
Mobile and articulated builds needing real torque.
Custom Mechatronics Projects
A precision building block for mid-torque designs.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EXA-4030-specific demo — this is precision/industrial hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer — not as a claim that this exact part is used inside them.
Frequently Asked Questions
What type of product is the EXA-4030 Brushless Servo Motor?
Is the EXA-4030 brushless or coreless?
How does the EXA-4030 compare to the EXA-4015?
Is this the servo used inside Eilik or Panxer?
What voltage does it need?
Are there other sizes in this servo family?
