EXT-6006 High-Speed Brushless Servo Motor
- Delivers up to 60kg stall torque with a 170 RPM no-load speed, combining high torque and fast rotational performance in a single servo.
- Compact 68.5 × 24 mm cylindrical housing is designed for direct-mount rotary and hub-drive applications.
- Weighs 260g, providing a robust balance of power and speed for demanding robotics projects.
- High-performance brushless motor ensures smoother operation, improved efficiency, and longer service life than brushed servos.
- Operates on a 12V input voltage, making it compatible with standard robotics batteries and power systems.
- 13A stall current supports high-performance applications; suitable power supplies and wiring are recommended for reliable operation.
- TTL communication interface enables simple wiring and convenient daisy-chaining of multiple servos on a single communication bus.
- 170 RPM no-load speed makes it the fastest servo in the EPS/EXA/EXT lineup, ideal for speed-critical robotic motion.
- Part of the Energize Lab EXT Series, engineered for applications requiring both high torque and high rotational speed.
- Perfect for robot wheel and hub-drive systems, turret rotation, high-speed pan mechanisms, mobile robotics, industrial automation, and other torque-plus-speed actuation projects.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EXT Series
EXT-6006 High-Speed Brushless Servo Motor

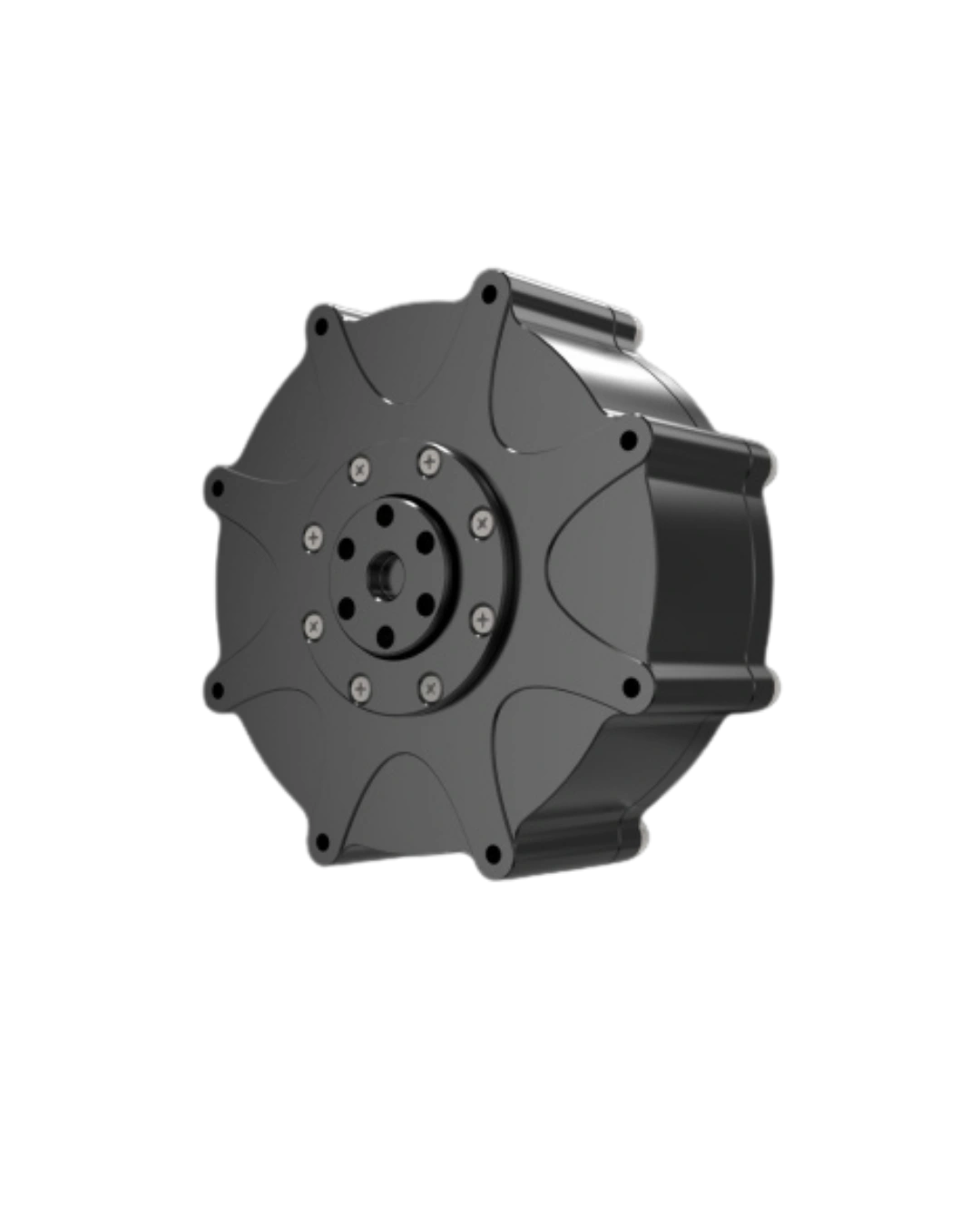

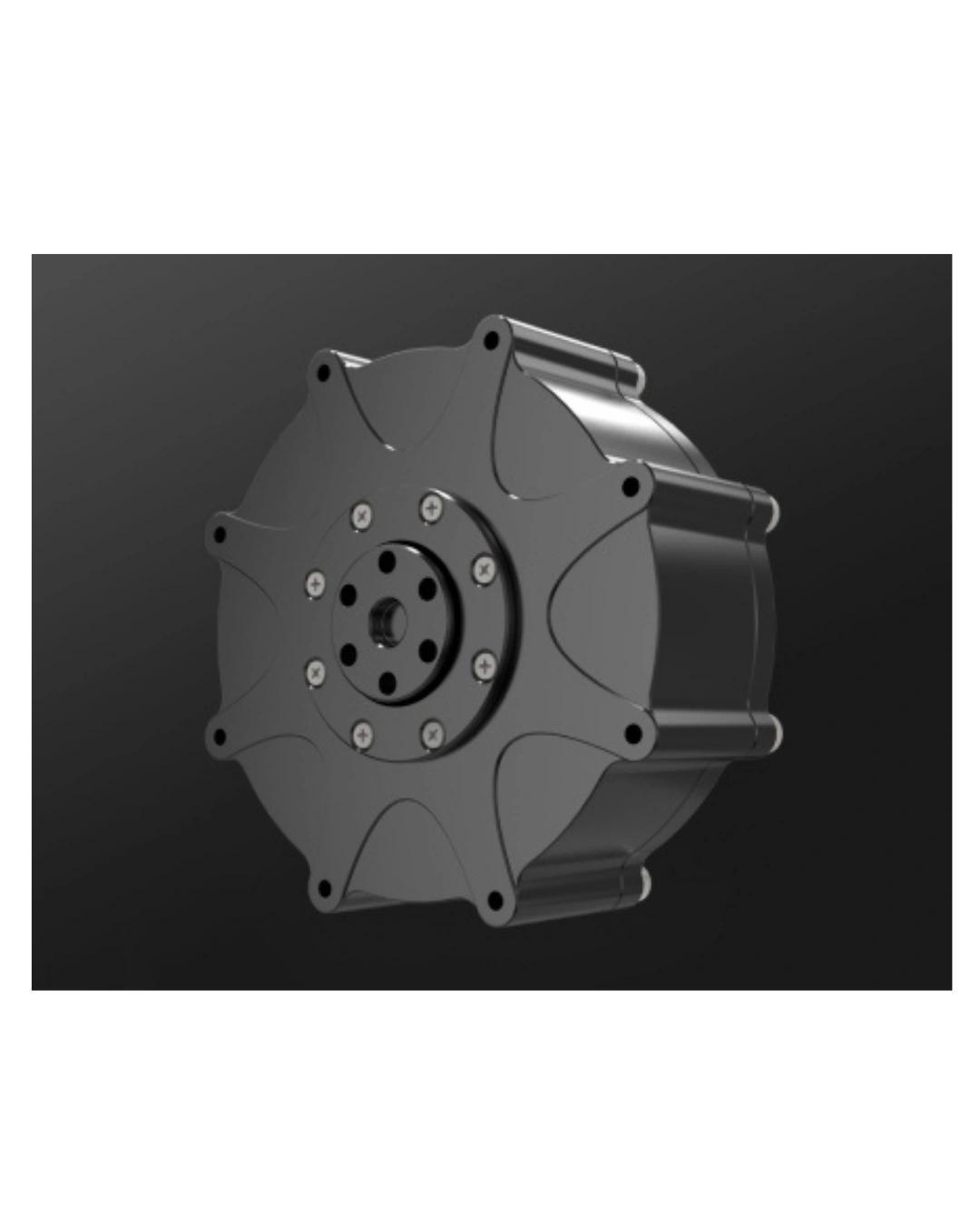

Genuine Energize Lab hardware in a distinct cylindrical, disc-shaped housing — a direct-mount rotary actuator built for wheel drives, turrets, and other applications needing both torque and speed together.
170 RPM — Fastest in Lineup
Brushless Motor
TTL Serial Control
Direct-Mount Rotary
Full Specifications
| Specification | Details |
|---|---|
| Product | EXT-6006 High-Speed Brushless Servo Motor — genuine Energize Lab hardware, part of the EXT Series |
| Product Category | High-Speed Brushless Direct-Drive Actuator / Robotics Component |
| Stall Torque | 60kg (at rated 12V input) — matching the EXA-4060, but at nearly triple the speed |
| No-Load Speed | 170 RPM — per xBoom’s own listing, the fastest servo across the EPS, EXA, and EXT lineups |
| Stall Current | 13A maximum — the highest current draw of any Energize Lab servo covered so far; plan wiring and power supply accordingly |
| Motor Type | Brushless DC motor |
| xBoom SKU | xboom-146257 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, supports daisy-chaining multiple servos on one bus |
| Input Voltage | 12V |

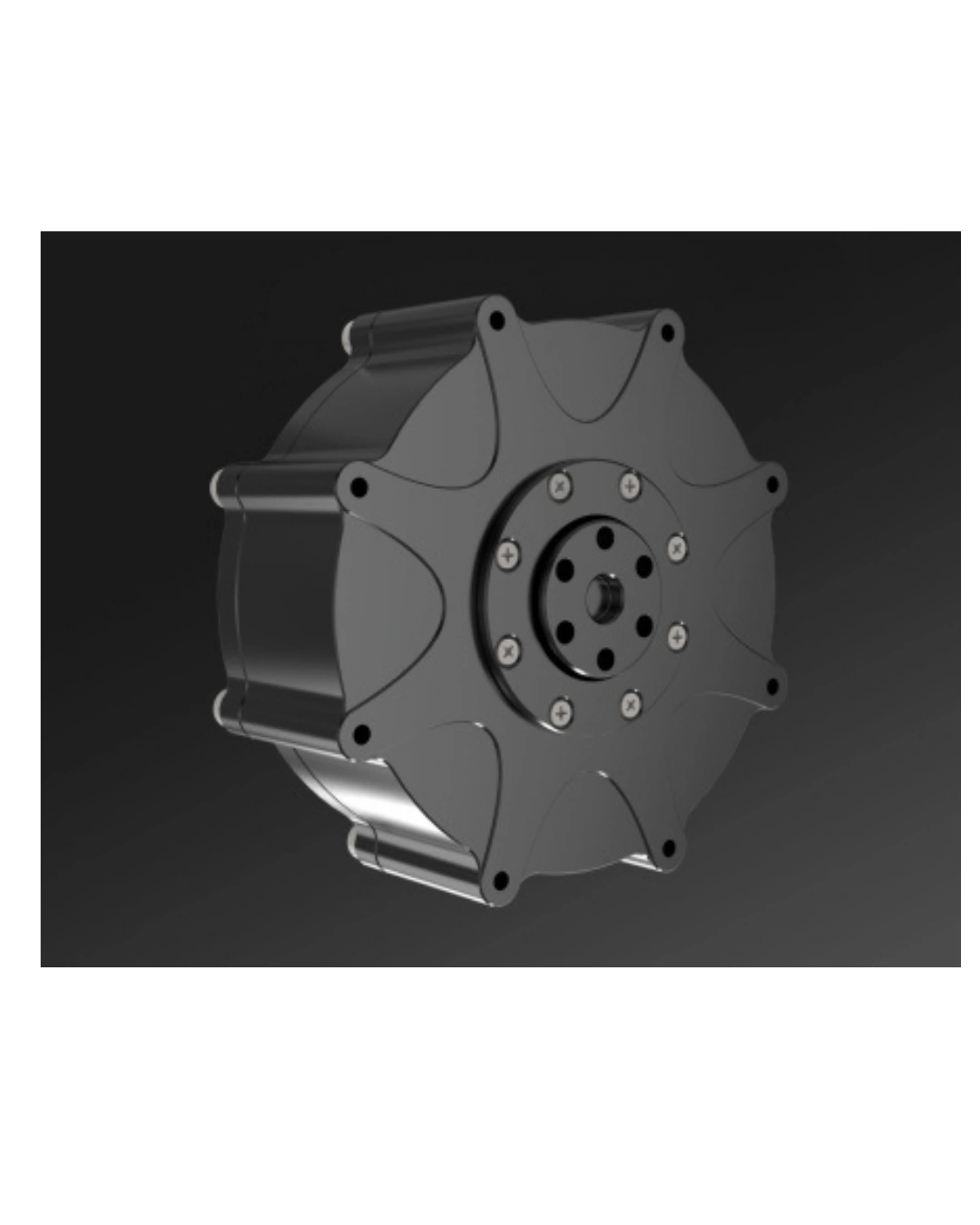

| Housing | 68.5 × 24mm cylindrical, disc-shaped — a genuinely different form factor from the rectangular EM/EH/EPS/EXA servo bodies, built for direct-mount rotary and hub-drive applications |
| Weight | 260g |
| Series | Energize Lab EXT Series (also includes the substantially higher-torque EXT-6100) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
A Genuinely Different Form Factor
EXT-6006 High-Speed Brushless Servo Motor: Genuine Energize Lab Hardware
The EXT-6006 looks nothing like the arm-style servos elsewhere in Energize Lab’s catalog — it’s a flat, disc-shaped, direct-mount rotary actuator, and Energize Lab’s own spec sheet describes it with only 2 dimensions (68.5 × 24mm) rather than the length-width-height figures used for the EM/EH/EPS/EXA lines. xBoom’s own listing confirms the same thing in plain language: “compact cylindrical housing designed for direct-mount rotary and hub-drive applications.” We verified every spec on this listing against Energize Lab’s own EXT Series table, and all of it matched exactly.
What makes the EXT-6006 distinctive is that it doesn’t trade torque for speed the way most of Energize Lab’s other high-torque servos do: at 60kg stall torque and 170 RPM no-load speed, it matches the EXA-4060’s torque rating while spinning nearly three times as fast. That combination — real torque delivered at real speed — is exactly what wheel-drive, turret, and fast pan-tilt applications need, and it draws 13A to do it, the highest current draw of any Energize Lab servo in this catalog so far.
170 RPM — Fastest in the Lineup
Faster than every EPS or EXA servo, per xBoom’s own claim.
60kg Stall Torque
Matches the EXA-4060’s torque, at nearly 3x the speed.
Direct-Mount Rotary Design
A disc-shaped hub motor, not an arm-style servo body.
TTL Serial Control
Daisy-chain multiple servos on a single control bus.
See Every Detail
What It Is, and Where It Goes
The EXT-6006 is a high-speed brushless direct-drive actuator — designed to mount directly to a wheel, turret, or rotating platform rather than driving a jointed arm through a gearbox output spline.
⚙️ Hub-Drive Motor
🛞 Wheel Drive Component
🎯 Turret Rotation
🔗 TTL Bus Servo
Robot Wheel & Hub Drives
Direct-mount actuation for wheeled mobile robots.
Turret Rotation
Fast, high-torque rotation for turret mechanisms.
High-Speed Pan Mechanisms
Quick, responsive panning for cameras and sensors.
Mobile Robotics
Drivetrain actuation for fast-moving robot platforms.
Industrial Automation
Torque-plus-speed positioning in automation equipment.
Research Platforms
High-speed, high-torque actuation for robotics research.
From the Same Manufacturer Behind Eilik and Panxer
The EXT-6006 is genuine Energize Lab hardware from its EXT Series — the manufacturer’s torque-plus-speed direct-drive line, distinct from the arm-style EM/EH/EPS/EXA servos. It is not confirmed to be the servo inside Eilik or Panxer specifically, though Panxer — the wheeled/driveable robot in Energize Lab’s own lineup — is the closest thematic fit of any Energize Lab robot to what this wheel-drive-oriented actuator is built for.
Torque and Speed, Together
The EXT-6006 High-Speed Brushless Servo Motor is built for applications that need real torque without giving up speed.
🌀
170 RPM No-Load
The fastest servo across Energize Lab’s EPS/EXA/EXT lines.
💪
60kg Stall Torque
Real torque delivered without sacrificing rotation speed.
⚙️
Direct-Mount Rotary Housing
A disc-shaped form factor built for wheels and hubs.
🔌
TTL Serial Interface
Daisy-chain multiple servos on a shared control bus.
⚡
12V, 13A Stall
The highest current draw in this catalog — plan wiring accordingly.
🧲
Brushless DC Design
Smoother operation and longer service life than brushed motors.
Built for Wheels, Turrets, and Fast Rotation
The EXT-6006 suits builders whose application spins something directly — a wheel, a turret, a pan mount — rather than driving a jointed arm.
Robot Wheel & Hub Drives
Direct-mount actuation for wheeled mobile robots.
Turret Rotation
Fast, torque-backed rotation for turret mechanisms.
High-Speed Pan Mechanisms
Quick, responsive panning for cameras and sensors.
Mobile Robotics
Drivetrain actuation for fast-moving robot platforms.
Industrial Automation
Torque-plus-speed positioning in automation equipment.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EXT-6006-specific demo — this is industrial/direct-drive hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer. Panxer — a robot Eilik has been shown driving — is the closest thematic fit to a wheel-drive actuator like this one, though this exact part is not confirmed to be inside it.
