MyCobot 280 Raspberry Pi

RASPBERRY PI 4B ONBOARD: 1.5GHz quad-core CPU running Debian/Ubuntu — works fully standalone, no host PC needed
6 DOF / 250G PAYLOAD / 280MM REACH: Same proven myCobot 280 arm geometry, 850g net weight, ±0.5mm repeatability
RICH I/O: 40 GPIO pins, USB 3.0 x2 + USB 2.0 x2, dual micro-HDMI — built for secondary hardware development
BUILT-IN ROS + BLOCKLY: Ships with ROS simulation support and Blockly visual programming alongside full Python access
OPEN API ACCESS: Direct control via Python, C++, C#, JavaScript, or dive straight into the open-source ROS stack

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

MyCobot 280 Raspberry Pi - 6 DOF Collaborative Robotic Arm

Elephant Robotics

MyCobot 280 Raspberry Pi

6 DOF Collaborative Robotic Arm — Raspberry Pi Edition

A multi-functional, lightweight collaborative robot built around a Raspberry Pi 4B processor. Works fully standalone with built-in ROS and Blockly, rich USB/HDMI/GPIO interfaces, and open-source support for multi-platform secondary development.

6 DOF280mm Reach250g Payload Raspberry Pi 4B850g Weight±0.5mm Accuracy

See It Move

myCobot Pi in Action

Unlimited Potential

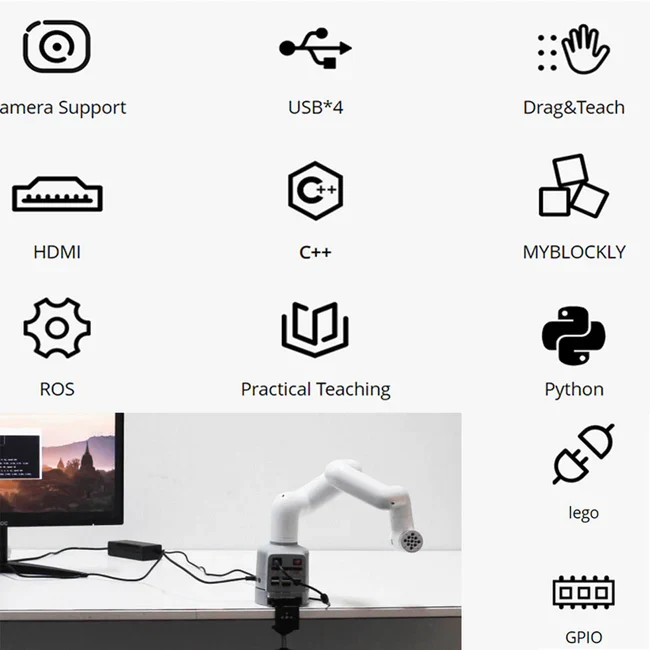

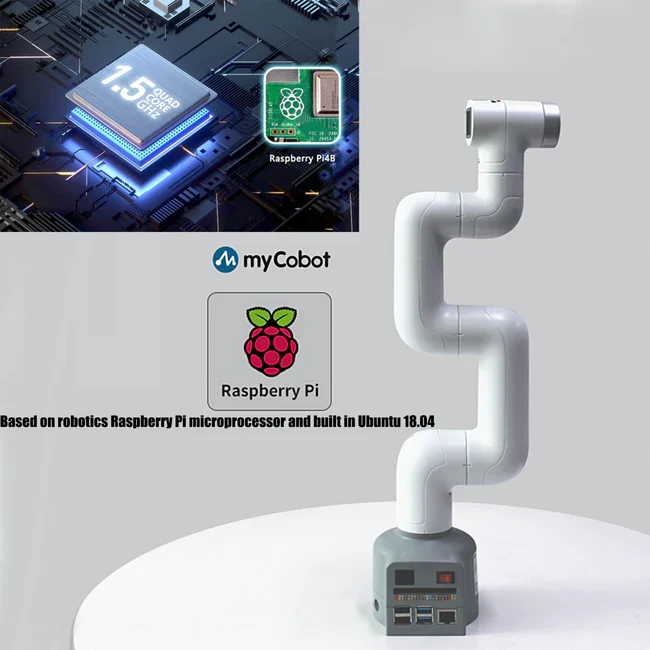

Raspberry Pi Ecosystem Onboard

1.5GHz quad-core CPU running Debian/Ubuntu, with 4 USB ports, 2 micro-HDMI and standardized GPIO.

Built-in ROS & Blockly

Runs a ROS simulation manipulator state out of the box, plus Blockly visual programming alongside the Python interface.

Image Recognition Ready

Works with any camera for image recognition, and independently matches accessories like grippers or suction pumps.

Compact Build

Accessory-Ready Platform

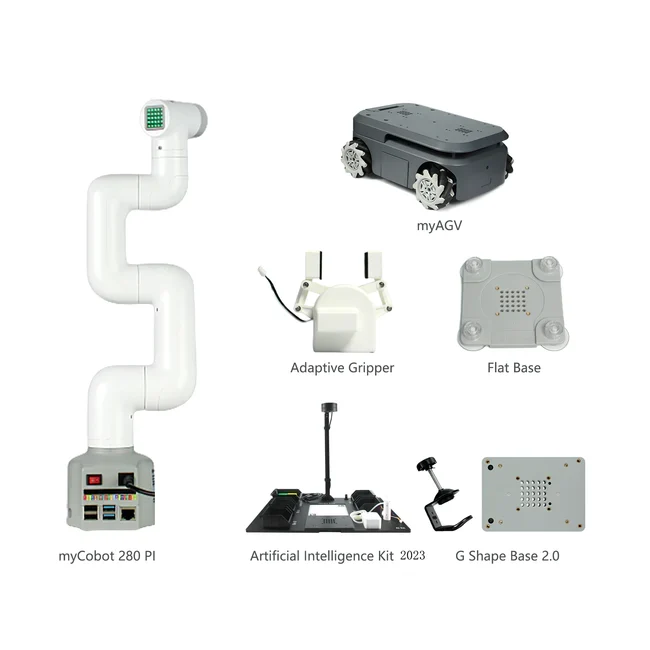

myCobot Pi with flat base and adaptive gripper

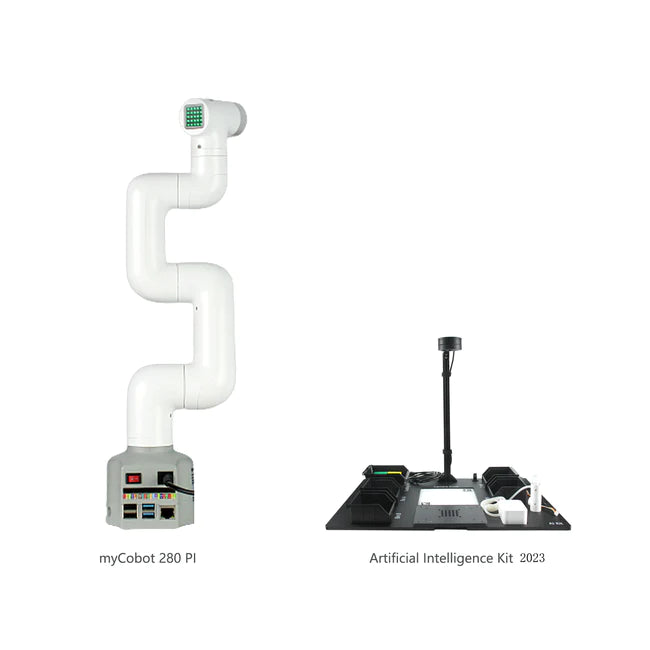

myCobot Pi with Artificial Intelligence Kit

Product Overview

Full Specifications

Model	myCobot-Pi
DOF	6
Payload	250 g
Working Range	280 mm
Repeatability	± 0.5 mm
Weight	850 g
SOC / CPU	Broadcom BCM2711, 1.5GHz Quad-core
USB / HDMI	USB3.0 x2, USB2.0 x2 · micro HDMI x2
Power Input	8V, 5A · Type-C communication
Working Condition	-5°C to 45°C
Software	Myblockly, Mind+, RoboFlow, C#, C++, Python, JS, ROS, MoveIt
Package Includes	1x myCobot 280, 1x Power Supply, 1x Cable Set, 1x User Manual

Good to Know

Frequently Asked Questions

Does it support secondary development?

Yes — use the Python, C++, C#, or JavaScript API to control myCobot directly or remotely, or work with the open-source ROS code.

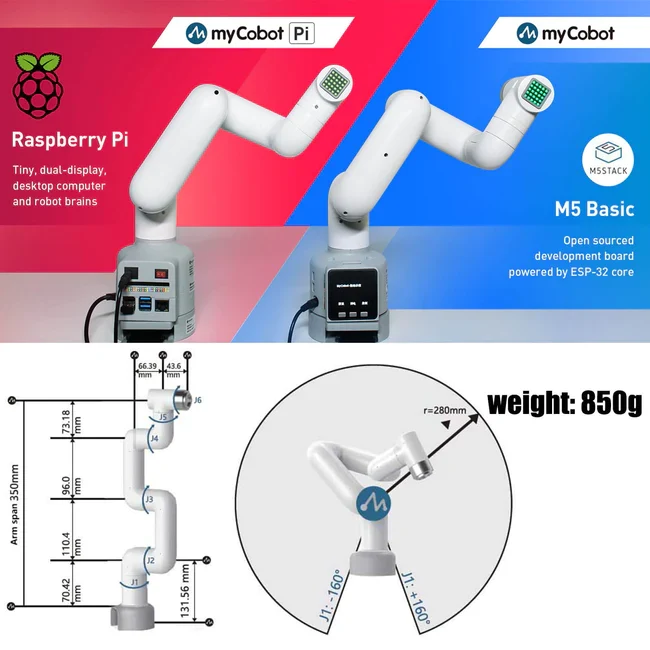

What's the difference from the M5 version?

The Pi version works independently (Debian/Ubuntu, built-in ROS/Python) while the M5 version connects to a PC and runs Arduino with an onboard 2" display.

Is there a camera included?

No onboard camera, but it works with any external camera and machine-vision kits are available separately.

How accurate is repeat positioning?

±0.5mm for myCobot 280, best achieved with periodic rest breaks during extended use.
