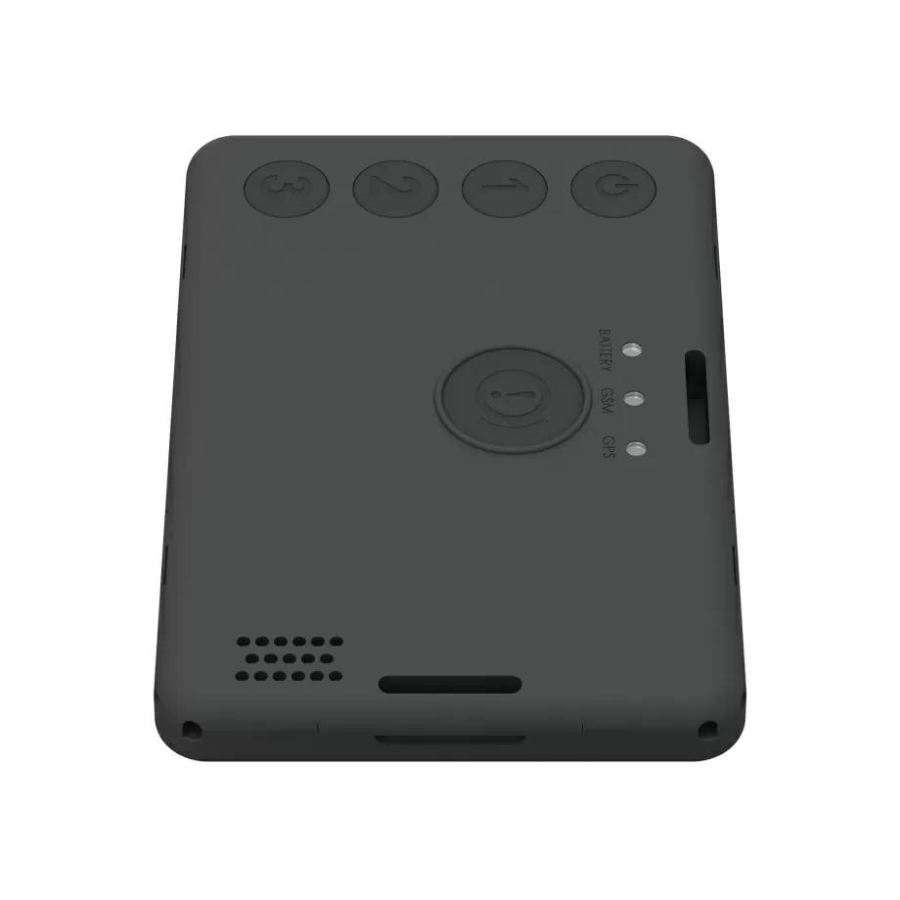

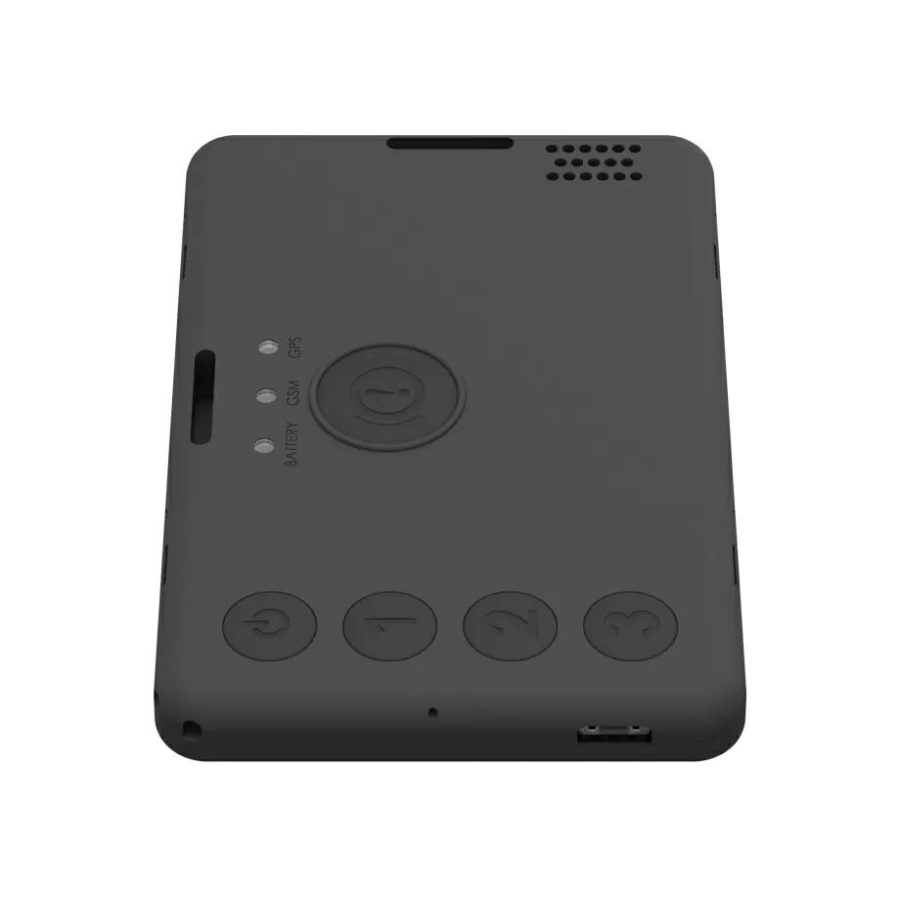

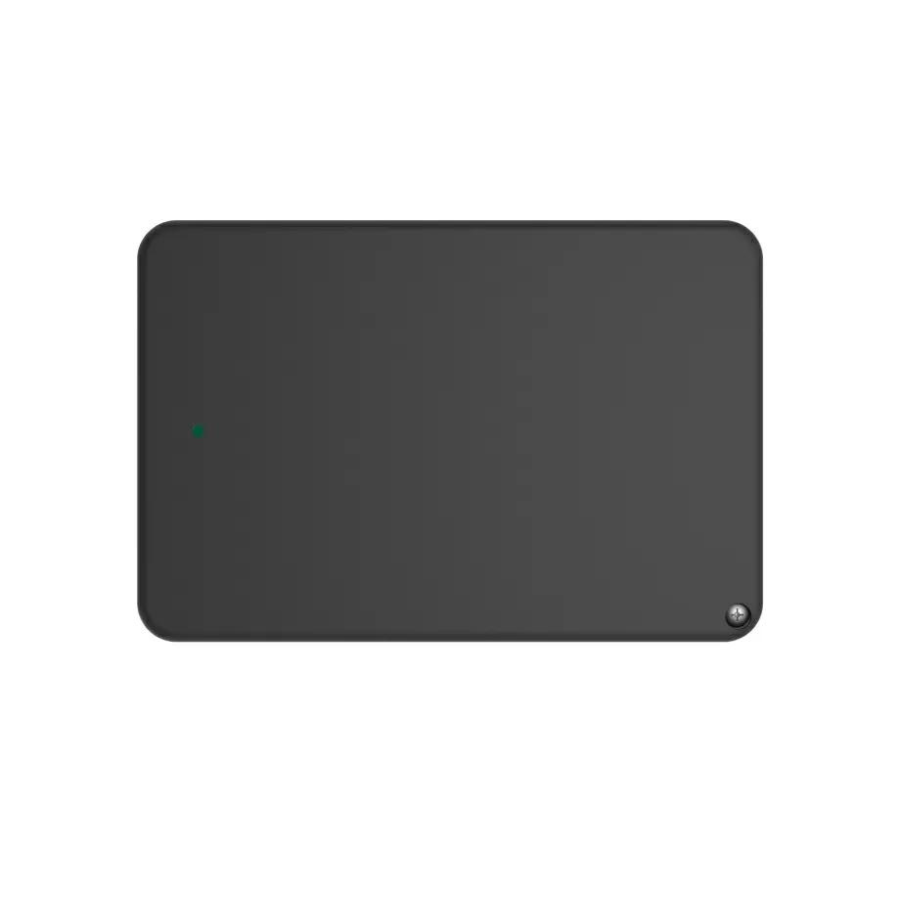

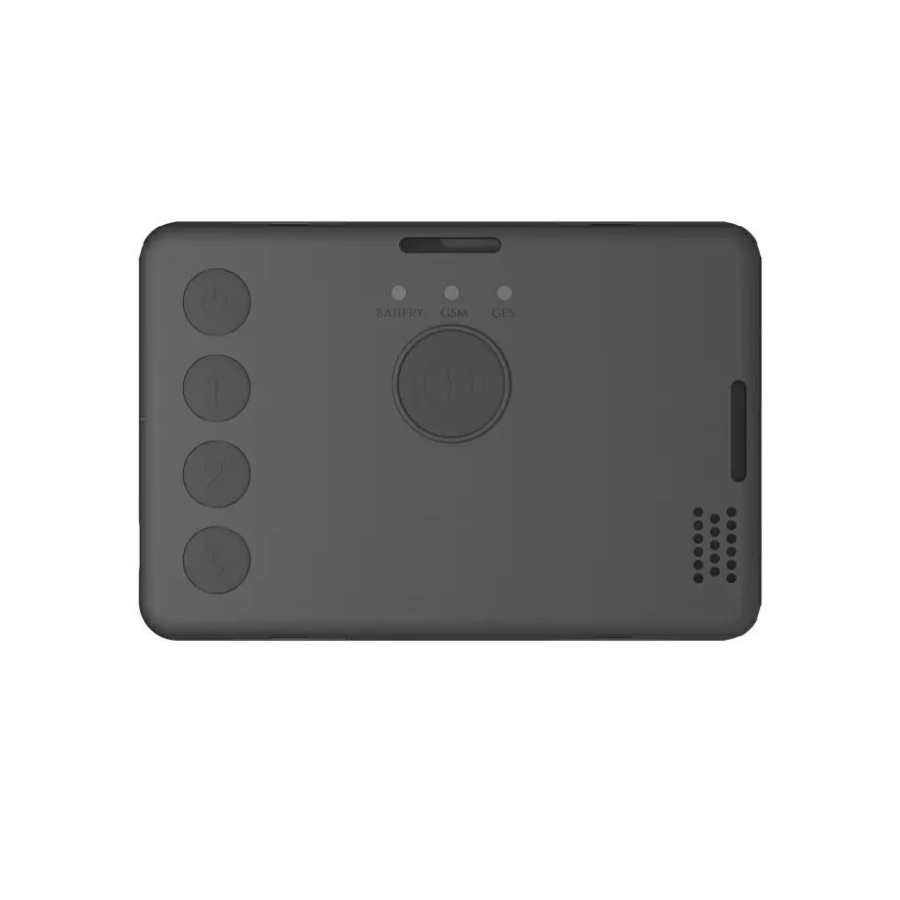

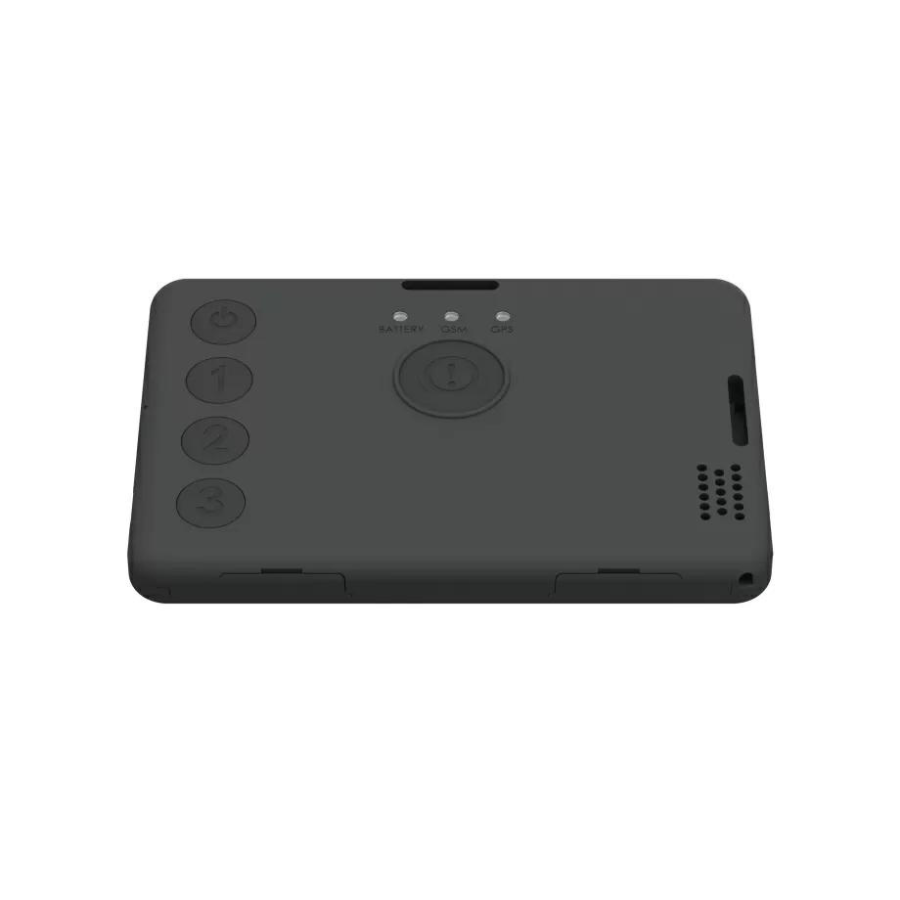

GH5200
Worker BadgePLUS, also known as the GH5200, is an autonomous tracker that was developed for anyone who conducts work that does not require the close or direct supervision of others. This includes those who operate in the healthcare, maintenance, social, and lone worker sectors, as well as employees who work outside of regular working hours. A solution to the problem of maintaining social distance while simultaneously gathering data on the activities of workers during the course of the workday is provided by the device. This device’s major functions include a robust battery, high-quality voice communication in the event of an emergency, five customizable buttons, and man-down and no movement scenarios. It is because of these important capabilities that it is the most coveted product on the market.
LONE WORKER MONITORING WITH GH5200 TRACKER
It is estimated that there are approximately 53 million people working alone in their respective fields across the globe. Because of the one-of-a-kind difficulties they experience, particular preventative actions and protocols are required to guarantee both their health and their safety. Businesses and other organisations ought to get moving on putting proper countermeasures in place in order to solve these problems. The good news is that Teltonika Telematics provides a workable solution to these concerns in the form of autonomous GPS tracking.
SAFETY SOLUTION WITH TMT250 TRACKER FOR HOTEL WORKERS
The hospitality industry is a substantial economic sector that makes a sizeable contribution to the total GDP of the world, accounting for more than 11% of that figure. Fortuitously, employees working in hotels or resorts, as well as their management and employers, are forced to deal with a wide variety of concerns on a daily basis, including safety hazards and security risks. Thankfully, Teltonika Telematics provides an intelligent solution to these worries in the form of an autonomous GPS tracker.
A SOLUTION FOR MONITORING PPE WITH THE GH5200 TRACKER
In most countries, employees must wear personal protective equipment (PPE) in the workplace to prevent downtimes and accidents that could lead to financial loss or death. However, without proper monitoring, it is difficult to ensure compliance. That is where Teltonika Telematics can help by offering a smart solution for remotely tracking and monitoring employees, ensuring that everyone is following the safety protocols.
TWO-WAY VOICE COMMUNICATION FOR EMERGENCY SITUATIONS
When emergency assistance is required, the ability to support up to 5 call or SMS recipients enables instant transmission of a text message or the initiation of a call.
CONFIGURABLE BUTTONS FOR PERSONALISED USAGE SCENARIOS
There are five customizable buttons that can be utilised for a variety of different events, including amber warning, action-on-call, and on-demand tracking.
MAN-DOWN, ALARM, AND NO-MOTION SCENARIOS BUILT IN
Individuals who work alone or who are otherwise vulnerable can be protected by means of specialized, pre-programmed situations.
A SMALL SIZE AND COMFORTABLE FIT
The ID card holder has a sleek design that makes it ideal for everyday usage as a practical accessory that can be worn around the neck or on the belt.
Specifications
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receiver
33 channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM/GPRS
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
GNSS antenna
Internal High Gain
Cellular antenna
Internal GSM High Gain
USB
2.0 Micro-USB
LED indication
3 LED indicators
Buttons
5 configurable buttons
SIM
Micro-SIM
Memory
128MB internal flash memory
Operating humidity
under 85% non-condensing
Ingress Protection Rating
IP30
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +58 °C
Battery storage temperature
-20 °C to +60°C for 1 month; -5 °C to +30°C for 6 months
Scenarios
Alarm button, Man-Down Detection, Home Zone, Amber Alert, Inside Tracking, Movement/No Movement Events, 50 Manual Geofence zones, Over Speeding, Action On Call feature, Real Time tracking, Smart Algorithm of GPRS data sending for GPRS traffic saving, Asset Tracking, Power On/Off event, Event on a Pressed Button, On Demand tracking via button press, Beacon On Demand tracking, Xiaomi Mi Band 2 heart rate measurement and heart rate range exit alerts, Race Mode
Sensors
Accelerometer
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, Teltonika Configurator (USB, Bluetooth)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
